AF400
Small Compact Dust Collector   Description

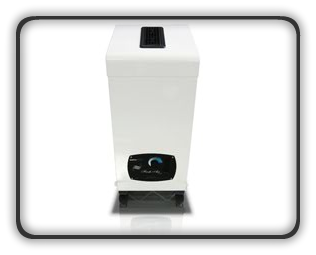

Quatro-air AF400

  • Designed to fit into an application where direct capture from the source is possible.
  • The AF uses high power blower motors to pull the air through 3 stages of filtration consisting of a pre-filter for large particulate, a certified HEPA filter to capture 99.97% of all particulate greater than 0.3 micron and a chemical filter with up to 40 lbs. (18kg) of odor and VOC treatment.
  • This unit is available in brushed and brushless versions.
  • This unit has many options and can be customized for OEM applications.
Quatro-air AF400 Quatro-air AF400 Quatro-air AF400



Quatro-air F164 Quatro-air AG097 Quatro-air AG097
F164 AG097 AG033


AF400-D Dust Only
Height 29"(737mm)
Width 13"(330mm)
Depth 16"(407mm)
Weight 48lb (21.77kg )
CFM 170 (288 m3 / h)
W.C 3"
# / Pallet by Plane N/A
# / Pallet by Boat N/A

AF400-DM Dust & Acrylic
Height 29"(737mm)
Width 13"(330mm)
Depth 16"(407mm)
Weight 48lb (21.77kg )
CFM 170 (288 m3 / h)
W.C 3"
# / Pallet by Plane N/A
# / Pallet by Boat N/A


Motor Type Motorized Impeller
Amps 1.6 / 0.8 (AF400-D)
  1.6 / 0.8 (AF400-DM)
Voltage 120 / 230
* Red indicates 230Volt usage

Replacement Parts Part Number
Fuse E086
1/8" Gasket Roll (40') H006
AF400 Motor, 120v A001
AF400 Motor, 230v A035
Blower Motor Assy-120v A045
Fan Isolators H454
Speed Ctrl (dial only) E181
Speed Control, 120v E158
BioScan Motor, 120v A014
Line cord-120v E118
Toggle Switch E011
Casters H042
Speed Control-230v E170
BioScan Motor,230v AB021
Line cord (Std-230v) E130


CE Certified
CSA Certified
HEPA Filters Certified

  • Available Soon
